KELOMPOK (045,043,080) Tampilan Aplikasi

Setelah kemarin kita membuat 3 tabel yaitu tabel barang, tabel supplier dan tabel pembelian. Sekarang kita akan membuat aplikasi beradasarkan 3 tabel tersebut menggunakan VB.net sebagai bahasa pemogramannya dan SQL Server 2014 sebagai databasenya.


Cara Mengoneksikan Ke Database SQL Server 2014

Imports System.Data
Imports System.Data.Sql
Imports System.Data.SqlClient
Module mdlkoneksi
    Public comSQL As New SqlClient.SqlCommand
    Public sql As String
    Public conn As New SqlConnection
    Public str As String = "Data Source=SARJONO-PC;Initial Catalog=KelompokSangar;Integrated Security=True"

    Public Sub bukakoneksi()
        If conn.State = ConnectionState.Closed Then
            conn.ConnectionString = str
            Try
                conn.Open()
                'MsgBox("Koneksi Berhasil")
            Catch ex As Exception
                MsgBox("Koneksi Gagal: " & ex.ToString)
            End Try
        End If
    End Sub

    Public Sub tutupkoneksi()
        If conn.State = ConnectionState.Open Then
            Try
                conn.Close()
            Catch ex As Exception
                MsgBox("Gagal menutup koneksi: " & ex.ToString)
            End Try
        End If
    End Sub
End Module

Tampilan Form beserta Coding Simpan, Edit, Delete dan Tampilkan

1. From Menu

Public Class FormMenu

    Private Sub BarangToolStripMenuItem_Click(sender As Object, e As EventArgs) Handles BarangToolStripMenuItem.Click
        Form1.MdiParent = Me
        Form1.Show()
        Form2.Hide()
        Form3.Hide()
    End Sub

    Private Sub SupplierToolStripMenuItem_Click(sender As Object, e As EventArgs) Handles SupplierToolStripMenuItem.Click
        Form2.MdiParent = Me
        Form2.Show()
        Form1.Hide()
        Form3.Hide()
    End Sub

    Private Sub PembelianToolStripMenuItem_Click(sender As Object, e As EventArgs) Handles PembelianToolStripMenuItem.Click
        Form3.MdiParent = Me
        Form3.Show()
        Form1.Hide()
        Form2.Hide()
    End Sub
End Class

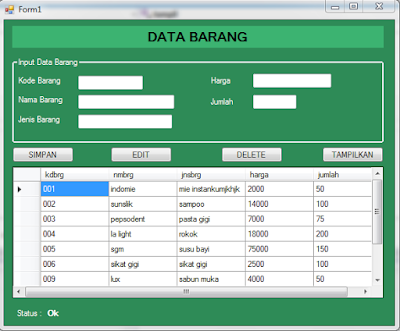

2. From Data Barang
Imports System.Data.SqlClient
Public Class Form1
    Private Sub tampil(ByVal aksi As String)
        bukakoneksi()

            sql = "SELECT * FROM Barang"

        Dim da As New SqlDataAdapter(sql, conn)
        Dim ds As New DataSet
        da.Fill(ds)
        Dim dt As New DataTable

        For Each dt In ds.Tables
            DataGridView1.DataSource = dt
        Next

        tutupkoneksi()
    End Sub

    Private Sub BtnSimpan_Click(sender As Object, e As EventArgs) Handles BtnSimpan.Click
        bukakoneksi()
        sql = "INSERT INTO Barang(kdbrg,nmbrg,jnsbrg,harga,jumlah) VALUES ( " &
            "'" & TxtKodeBarang.Text & "'," & "'" & TxtNamaBarang.Text & "'," & "'" & TxtJenisBarang.Text & "'," & "'" & TxtHarga.Text & "'," &
            "'" & TxtJumlah.Text & "')"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
        Catch ex As Exception
        End Try

        tutupkoneksi()
        tampil("")
        lb_status.Text = "Simpan Berhasil"
    End Sub

    Private Sub BtnEdit_Click(sender As Object, e As EventArgs) Handles BtnEdit.Click
        bukakoneksi()
        sql = "UPDATE barang SET nmbrg = '" & TxtNamaBarang.Text & "'," &
        "jnsbrg='" & TxtJenisBarang.Text & "'," &
        "harga='" & TxtHarga.Text & "'," &
        "jumlah='" & TxtJumlah.Text & "'" &
        "WHERE kdbrg='" & TxtKodeBarang.Text & "'"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("edit berhasil")
            lb_status.Text = "Edit Berhasil"
        Catch ex As Exception
            'MsgBox("edit gagal")
        End Try

        tutupkoneksi()
        tampil("")
    End Sub

    Private Sub BtnTampilkan_Click(sender As Object, e As EventArgs) Handles BtnTampilkan.Click
        tampil("")
        lb_status.Text = "Ok"
    End Sub


    Private Sub DataGridView1_CellClick(sender As Object, e As DataGridViewCellEventArgs) Handles DataGridView1.CellClick
        Dim i As Integer
        i = DataGridView1.CurrentRow.Index
        TxtKodeBarang.Text = DataGridView1.Item(0, i).Value
        TxtNamaBarang.Text = DataGridView1.Item(1, i).Value
        TxtJenisBarang.Text = DataGridView1.Item(2, i).Value
        TxtHarga.Text = DataGridView1.Item(3, i).Value
        TxtJumlah.Text = DataGridView1.Item(4, i).Value
    End Sub

    Private Sub BtnDelete_Click(sender As Object, e As EventArgs) Handles BtnDelete.Click
        bukakoneksi()
        sql = "DELETE FROM Barang Where kdbrg='" & TxtKodeBarang.Text & "'"
        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("hapus berhasil")
            lb_status.Text = "Hapus Berhasil"
        Catch ex As Exception
            'MsgBox("hapus gagal")
        End Try

        tutupkoneksi()
        tampil("")
    End Sub

    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        tampil("")
    End Sub
End Class

3. From Data Supplier

Imports System.Data.SqlClient
Public Class Form2
    Private Sub tampil(ByVal aksi As String)
        bukakoneksi()

        sql = "SELECT * FROM Supplier"

        Dim da As New SqlDataAdapter(sql, conn)
        Dim ds As New DataSet
        da.Fill(ds)
        Dim dt As New DataTable

        For Each dt In ds.Tables
            DataGridView1.DataSource = dt
        Next

        tutupkoneksi()
    End Sub

    Private Sub BtnTampilkan_Click(sender As Object, e As EventArgs) Handles BtnTampilkan.Click
        tampil("")
        lb_status.Text = "Ok"
    End Sub

    Private Sub BtnSimpan_Click(sender As Object, e As EventArgs) Handles BtnSimpan.Click
        bukakoneksi()
        sql = "INSERT INTO Supplier(kdsup,nmsup,tgllhr,alamatkantor,telpkantor,jekel,email) VALUES
 ( " & "'" & TxtKodeSupplier.Text & "'," & "'" & TxtNamaSupplier.Text & "'," & "'" & TxtTanggalLahir.Text & "'," &
   "'" & TxtAlamatKantor.Text & "'," & "'" & TxtTelponKantor.Text & "'," & "'" & TxtJenisKelamin.Text & "'," &
            "'" & TxtEmail.Text & "')"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
        Catch ex As Exception
        End Try
        tampil("")
        tutupkoneksi()
        lb_status.Text = "Simpan Berhasil"
    End Sub

    Private Sub BtnEdit_Click(sender As Object, e As EventArgs) Handles BtnEdit.Click
        bukakoneksi()
        sql = "UPDATE Supplier SET " &
        "nmsup='" & TxtNamaSupplier.Text & "'" &
        "tgllhr='" & TxtTanggalLahir.Text & "'" &
        "alamatkantor='" & TxtAlamatKantor.Text & "'" &
        "telpkantor='" & TxtTelponKantor.Text & "'" &
        "jekel='" & TxtJenisKelamin.Text & "'" &
        "email='" & TxtEmail.Text & "'" &
        "WHERE kdsup='" & TxtKodeSupplier.Text & "'"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("edit berhasil")
        Catch ex As Exception
            'MsgBox("edit gagal")
        End Try
        tutupkoneksi()
        tampil("")
        lb_status.Text = "Update Berhasil"

    End Sub

    Private Sub BtnDelete_Click(sender As Object, e As EventArgs) Handles BtnDelete.Click
        bukakoneksi()
        sql = "DELETE FROM Supplier Where kdsup='" & TxtKodeSupplier.Text & "'"
        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("hapus berhasil")
        Catch ex As Exception
            'MsgBox("hapus gagal")
        End Try
        tampil("")
        tutupkoneksi()
        lb_status.Text = "Delete Berhasil"
    End Sub

    Private Sub DataGridView1_CellClick(sender As Object, e As DataGridViewCellEventArgs) Handles DataGridView1.CellClick
        Dim i As Integer
        i = DataGridView1.CurrentRow.Index
        TxtKodeSupplier.Text = DataGridView1.Item(0, i).Value
        TxtNamaSupplier.Text = DataGridView1.Item(1, i).Value
        TxtTanggalLahir.Text = DataGridView1.Item(2, i).Value
        TxtAlamatKantor.Text = DataGridView1.Item(3, i).Value
        TxtTelponKantor.Text = DataGridView1.Item(4, i).Value
        TxtJenisKelamin.Text = DataGridView1.Item(5, i).Value
        TxtEmail.Text = DataGridView1.Item(6, i).Value
    End Sub

    Private Sub Form2_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        tampil("")
    End Sub
End Class

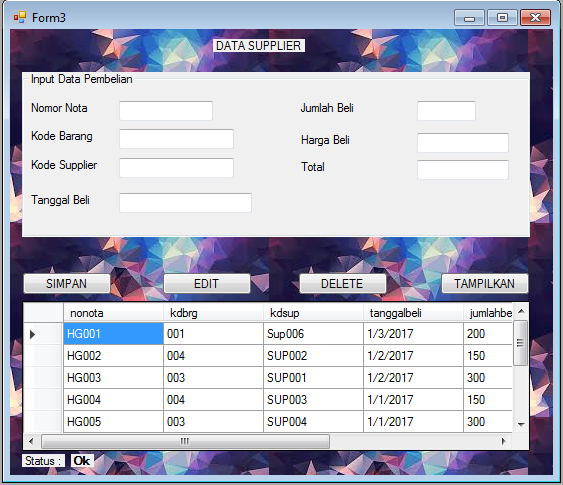

4.Form Data Pembelian

Imports System.Data.SqlClient
Public Class Form3
    Private Sub tampil(ByVal aksi As String)
        bukakoneksi()

        sql = "SELECT * FROM Pembelian"

        Dim da As New SqlDataAdapter(sql, conn)
        Dim ds As New DataSet
        da.Fill(ds)
        Dim dt As New DataTable

        For Each dt In ds.Tables
            DataGridView1.DataSource = dt
        Next

        tutupkoneksi()
    End Sub

    Private Sub BtnSimpan_Click(sender As Object, e As EventArgs) Handles BtnSimpan.Click
        bukakoneksi()
        sql = "INSERT INTO Pembelian(nonota,kdbrg,kdsup,tanggalbeli,jumlahbeli,hargabeli,total) VALUES ( " &
            "'" & TxtNoNota.Text & "'," & "'" & TxtKodeBarang.Text & "'," & "'" & TxtKodeSupplier.Text & "'," & "'" & TxtTanggalBeli.Text & "'," &
            "'" & TxtJumlahBeli.Text & "'," & "'" & TxtHargaBeli.Text & "'," & "'" & TxtTotal.Text & "')"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("simpan berhasil")
        Catch ex As Exception
            'MsgBox("simpan gagal")
        End Try
        tampil("")
        tutupkoneksi()
        lb_status.Text = "Simpan Berhasil"
    End Sub

    Private Sub BtnEdit_Click(sender As Object, e As EventArgs) Handles BtnEdit.Click
        bukakoneksi()
        sql = "UPDATE Pembelian SET " &
        "kdbrg='" & TxtKodeBarang.Text & "'" &
        "kdsup='" & TxtKodeSupplier.Text & "'" &
        "tanggalbeli='" & TxtTanggalBeli.Text & "'" &
        "jumlahbeli='" & TxtJumlahBeli.Text & "'" &
        "hargabeli='" & TxtHargaBeli.Text & "'" &
        "total='" & TxtTotal.Text & "'" &
        "WHERE nonota='" & TxtNoNota.Text & "'"

        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("edit berhasil")
        Catch ex As Exception
            'MsgBox("edit gagal")
        End Try
        tampil("")
        tutupkoneksi()
        lb_status.Text = "Update Berhasil"
    End Sub

    Private Sub BtnDelete_Click(sender As Object, e As EventArgs) Handles BtnDelete.Click
        bukakoneksi()
        sql = "DELETE FROM Pembelian Where nonota='" & TxtNoNota.Text & "'"
        comSQL = New SqlCommand(sql, conn)

        Try
            comSQL.ExecuteNonQuery()
            'MsgBox("hapus berhasil")
        Catch ex As Exception
            'MsgBox("hapus gagal")
        End Try
        tampil("")
        tutupkoneksi()
        lb_status.Text = "Delete Berhasil"
    End Sub

    Private Sub BtnTampilkan_Click(sender As Object, e As EventArgs) Handles BtnTampilkan.Click
        tampil("")
        lb_status.Text = "Ok"
    End Sub


    Private Sub DataGridView1_CellClick(sender As Object, e As DataGridViewCellEventArgs) Handles DataGridView1.CellClick
        Dim i As Integer
        i = DataGridView1.CurrentRow.Index
        TxtNoNota.Text = DataGridView1.Item(0, i).Value
        TxtKodeBarang.Text = DataGridView1.Item(1, i).Value
        TxtKodeSupplier.Text = DataGridView1.Item(2, i).Value
        TxtTanggalBeli.Text = DataGridView1.Item(3, i).Value
        TxtHargaBeli.Text = DataGridView1.Item(4, i).Value
        TxtJumlahBeli.Text = DataGridView1.Item(5, i).Value
        TxtTotal.Text = DataGridView1.Item(6, i).Value
    End Sub

    Private Sub Form3_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        tampil("")
    End Sub
End Class
